歡迎光臨佛山市瑞爾斯環保設備有限公司官網!

服務熱線:
13690523395

專注環保設備制造19年

致力于固體廢物再生資源設備研發與設計制造

當前位置:首頁 >>產品中心

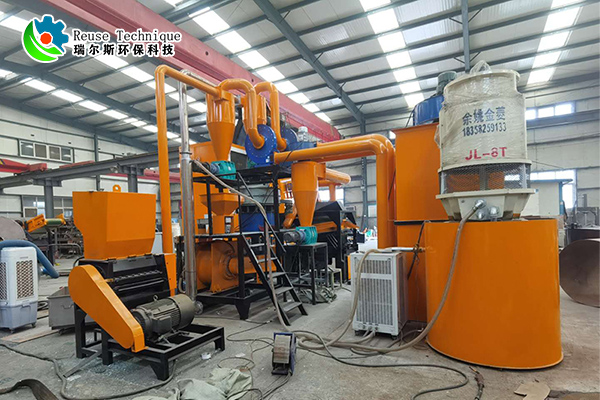

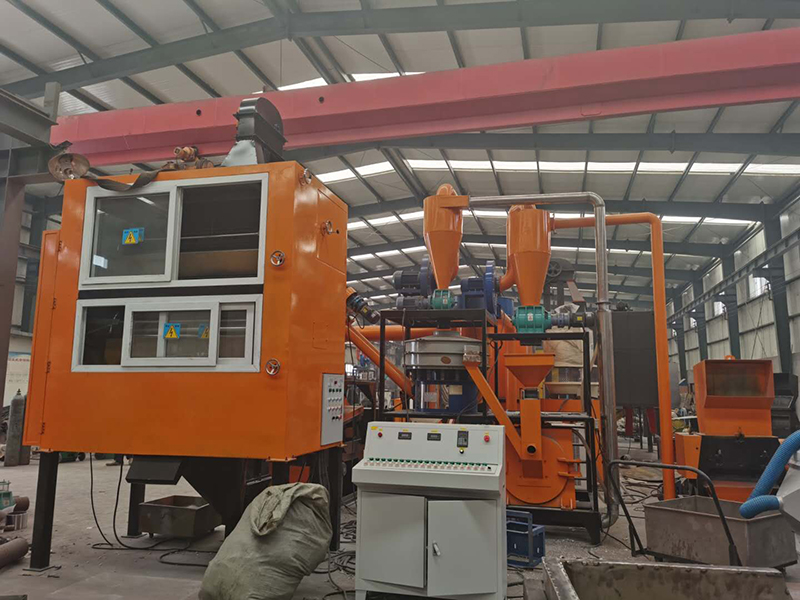

電路板粉碎分離回收設備


適用范圍:用于處理廢舊電路板、覆銅板、線路板及邊角料等物料中的金屬與非金屬的分離,回收其中的金屬和樹脂粉。


13690523395
產品參數 PRODUCTS PARAMETER

適用范圍:用于處理廢舊電路板、覆銅板、線路板及邊角料等物料中的金屬與非金屬的分離,回收其中的金屬和樹脂粉。

Scope of application:It is used for separating metals and non-metals in materials, such as waste circuit boards, CCL, circuit boards, bits and pieces, and recovering metals and resin powder in those materials.

?

設備特點Features of equipment:


1.整套流水線采用PLC智能化編程自動控制與人機界面觸摸屏,使整條生產線均勻進料,協調工作。

1. The entire assembly line uses the PLC intelligent programming automatic control and man-machine interface touch screen, so that the even feeding of the entire production line and coordinated work can be realized.

2.結構緊湊,布局合理,性能穩定,粉碎設備降噪處理。

2. Compact structure, reasonable layout, stable performance, noise reduction treatment of the crushing equipment.

3.粉碎部分采用撕碎、破碎、粉碎工藝,在粉碎室外部與內部采用循環水降溫。

3. The crushing part uses shredding, smashing and crushing processes, and circulating water cooling is used inside and outside the crushing chamber.

4.采用負壓上料系統與脈沖除塵系統,凈化了工作環境。

4. Use the negative pressure feeding system and pulse dust removal system to purify the working environment.

5.分選部分采用比重分選與靜電精選相結合,使金屬回收率高可以達到99%以上。

5. The sorting part adopts the proportion sorting combined with the static careful selection, so that the metal recovery rate can reach up to more than 99%.?



表格參數Table?parameters:

型號?Model 功率?(kw) Power (kw) 回收率(%)?Recovery percent (%) 除塵率(%)?Collection coefficient (%) 產量 Output (kgh) 外觀尺寸 External dimension (mm) 重量?(kg) Weight (kg)
SY-1000 45 ≧98 ≧99 150-200 6000*7500*4200 4250
SY-1500 68 200-300 7000*8200*4500 6500
SY-1800 110 300-500 8000*11000*4800 8500
SY-2000 198 1000-1200 8200*16000*5250 12500
